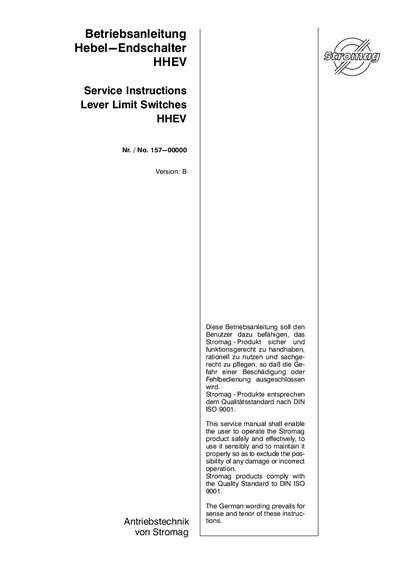

Stromag HHEV Lever Limit Switch Service Manual

This document is the instruction manual for Heble-Endschalter HHEV product, mainly introduces the use method, installation method, maintenance method, etc. of the product

Brand: Stromag
Category: Industrial Robot
Document type: Service Manual
Language: English
Pages: 20
File format: PDF
File size: 537 KB
Published: 10 July, 2012
Updated: 01 October, 2023
MD5 checksum: AC9DDBB616A743A42F5EA62AB3F2C207
PDF: Stromag HHEV Lever Limit Switch Service Manual PDF

About this manual

This service manual provides instructions for the safe operation, usage, and maintenance of Stromag HHEV lever limit switches. It ensures the product is handled correctly to prevent damage or incorrect operation, adhering to DIN ISO 9001 quality standards. The German wording prevails for the sense and tenor of these instructions.

What's inside

Technical Data
Nameplate
Key to Types
Mechanical Lever Data
Contact Data
Contact Connections
Application and Intended Use
Safety Guidelines
Assembly
Commissioning

Specifications

Max. cable cross section per terminal	2.5 mm2

Frequently asked questions

Which language prevails for the instructions?

The German wording prevails for the sense and tenor of these instructions.

What is the maximum drive speed at the drive lever roller?

The maximum drive speed at the drive lever roller is 215 m/min.

What is the maximum cross-section for copper strands connected to the contact terminals?

You can connect copper strands with a cross-section of 0.75 to 2.5 mm2.

How many cable inlet bores are standardly provided in the lever housing?

The standard execution is provided with three cable inlet bores in the lever housing.

Download PDF (537 KB)
