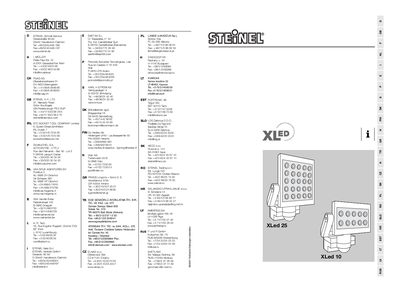

This user manual provides installation instructions, operational details, and safety warnings for the STEINEL XLed 10 and XLed 25 sensor-switched LED…
The STEINEL XLed 10 and XLed 25 are sensor-switched LED floodlights equipped with two 120° pyro sensors that detect invisible heat emitted by moving objects. These sensors achieve a coverage angle of 240° with an aperture angle of 180°, allowing the floodlight to switch on automatically when movement is detected.
| Sensor type | two 120° pyro sensors |
|---|---|
| Coverage angle | 240° |
| Aperture angle | 180° |
| Mains supply lead | 3-core cable |
| Minimum distance from other lights | 50 cm |
| Recommended installation height | approx. 2 m |
| Max reach | 12 m |
Basic brightness provides illumination at approx. 10 % light output.
The detection zone can be optimized using shrouds to blank out lens segments or shorten reach as required.
