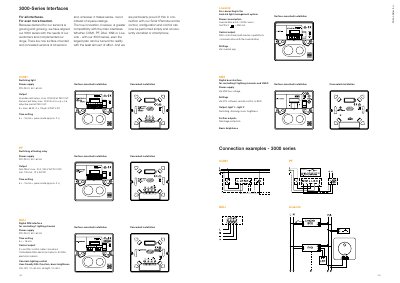

Technical overview of STEINEL 3000-Series motion detectors covering COM1, PF, DALI, KNX, and LiveLink interfaces with wiring diagrams and specifications.
This document provides detailed information about the STEINEL 3000-Series motion detectors, including their technical specifications, installation examples, and wiring diagrams. It covers various interfaces such as COM1, PF, DALI, KNX, and LiveLink, detailing power supply requirements, output capabilities, and time settings for each interface type.
| Power supply (COM1) | 220-240 V, 50 / 60 Hz |
|---|---|
| Output (COM1) | Incandescent lamps, max 2000 W at 230 V AC |
| Time setting (COM1) | 5 s - 15 min + pulse mode |
| Power supply (PF) | 220-240 V, 50 / 60 Hz |
| Output (PF) | Non SELV, max 10 A, 240 V AC |
| Time setting (PF) | 5 s - 15 min + pulse mode |
| Power supply (DALI) | 220-240 V, 50 / 60 Hz |
| Time setting (DALI) | 5 s – 15 min |
| Power supply (KNX) | Via KNX bus voltage |
The 3000 series supports COM1, PF, DALI, KNX, and LiveLink interfaces.
Yes, the time setting ranges from 5 seconds to 15 minutes, plus a pulse mode.
Yes, configuration and control can be performed via tablet or smartphone using the Smart Remote.
