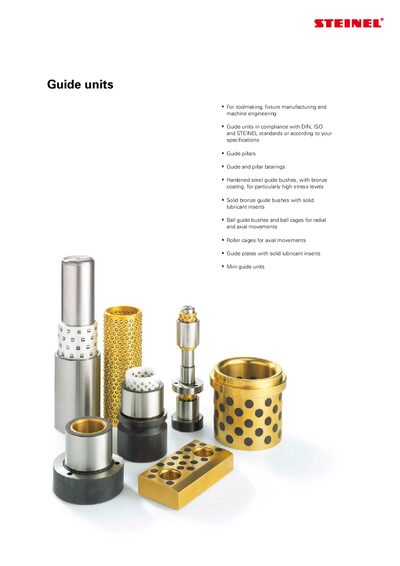

A detailed catalog of STEINEL guide units, covering sliding, ball and roller guides, dimensions, materials and technical data.
The STEINEL guide unit catalog presents a wide range of sliding, ball and roller guide products for toolmaking, fixture manufacturing and machine engineering. It includes information on guide pillars, guide bushes, ball cages and roller cages, with details on materials, coatings and lubrication systems.
Technical data such as guide clearance, sliding speed, preload ranges and loading capacities are listed for each guide type, together with order numbers, bore dimensions and clamp information for precise installation.
| Guide clearance | 2–7 µm |
|---|---|
| Recommended sliding speed | 15–30 m/min |
| Maximum sliding speed | 30 m/min |
| Roller guide preload range (Ø 24–32) | 4–5 µm |
The recommended sliding speed is 15–30 m/min.
Guide clearance is specified as 2–7 µm.
The maximum sliding speed is 30 m/min.
All guide bushes share a standard mounting diameter, allowing any bush to be used in any mounting bore.
