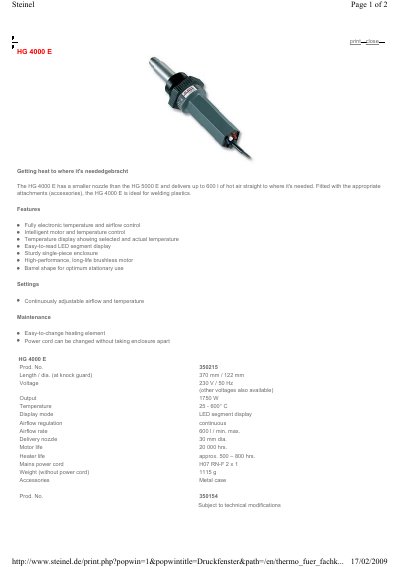

The HG 4000 E heat gun is a product of Steinel's heat gun series. It has features such as fully electronic temperature and airflow control, intelligent motor and temperature control, temperature display showing selected and actual temperature, and easy-to-read LED segment display.
The HG 4000 E is a compact heat gun with a 30 mm nozzle that delivers up to 600 l/min of hot air, ideal for plastic welding and other applications. It features fully electronic temperature and airflow control, an intelligent brushless motor, an LED segment display, and a sturdy single‑piece enclosure.
The manual covers the adjustable temperature (25‑600 °C) and airflow settings, explains how to change the heating element and power cord without disassembly, lists accessories such as a metal case, and provides detailed technical specifications for safe operation and maintenance.
| Length / diameter (at knock guard) | 370 mm / 122 mm |
|---|---|
| Voltage | 230 V / 50 Hz (other voltages also available) |
| Output power | 1750 W |
| Temperature range | 25 - 600 °C |
| Airflow rate (max) | 600 l/min |
| Delivery nozzle diameter | 30 mm |
| Motor life | 20 000 hrs |
| Heater life | ≈ 500 – 800 hrs |
| Weight (without power cord) | 1115 g |
| Power cord type | H07 RN-F 2 × 1 |
The HG 4000 E can deliver up to 600 l/min of hot air.
The heating element is easy to change and can be replaced without taking the enclosure apart.
It uses a high‑performance, long‑life brushless motor.
