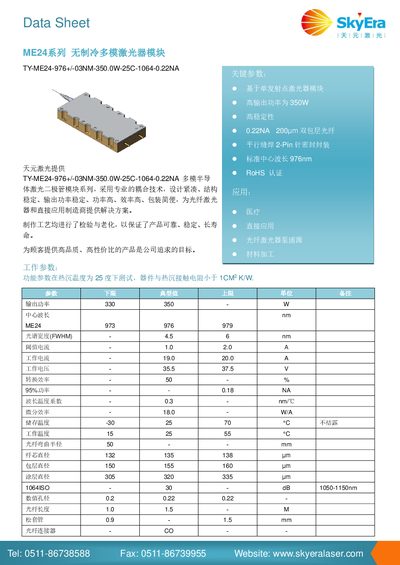

Data sheet for Skyeralaser TY-ME24 multimode semiconductor laser diode module, detailing specifications, dimensions, and usage guidelines.
The Skyeralaser TY-ME24 series is a high‑output, uncooled multimode semiconductor laser diode module designed for medical, direct‑application, fiber‑laser pump and material‑processing uses. It features a compact, stable design with a 0.22 NA, 200 µm double‑clad fiber and a 2‑pin sealed package.
Key specifications include up to 350 W output power, a center wavelength of 976 nm, and operation between 15 °C and 55 °C. The sheet also provides mechanical drawings and safety instructions such as avoiding eye exposure, using anti‑static handling, and ensuring proper heat dissipation. This manual is written in Chinese.
| Output Power | 350 W |
|---|---|
| Center Wavelength | 976 nm |
| Spectral Width (FWHM) | 4.5‑6 nm |
| Threshold Current | 1.0‑2.0 A |
| Working Current | 19.0‑20.0 A |
| Working Voltage | 35.5‑37.5 V |
| Fiber Core Diameter | 132‑138 µm |
| Fiber Cladding Diameter | 150‑160 µm |
| Storage Temperature Range | -30 °C to +70 °C |
| Operating Temperature Range | 15 °C to 55 °C |
Avoid laser exposure to eyes and skin, use anti‑static measures during transport and storage, ensure good heat dissipation, and use coated jumpers to reduce fiber end‑face reflections.
The module should be operated between 15 °C and 55 °C.
