Featured Skyeralaser manuals

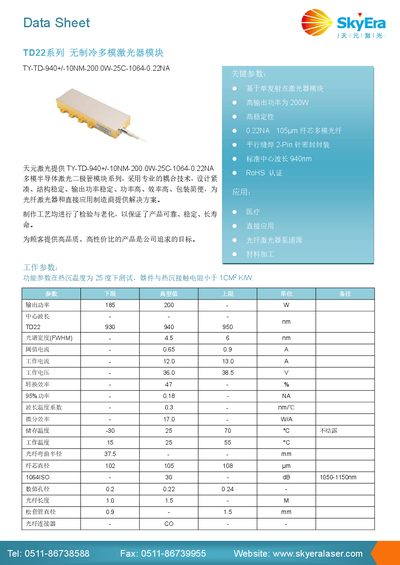

Skyeralaser TD22 Series Uncooled Multimode Laser Module TY-TD-940+/-10NM-200.0W-25C-1064-0.22NA Data Sheet
The TD22 series uncooled multimode laser module TY‑TD‑940+/-10NM‑200.0W‑25C‑1064‑0.22NA is a single‑emission‑point semiconductor laser diode designed for high output power (up to 200 W) and high stability. It features a 0.22 numerical aperture, 105 µm core multimode fiber coupling, and a 2‑pin sealed package. The module is RoHS‑compliant and intended for medical, direct‑use, fiber‑laser pump, and material‑processing applications.
The data sheet lists electrical and optical parameters, operating and storage temperature ranges, and handling instructions. Users must observe laser safety, anti‑static measures, proper soldering practices for currents above 6 A, and ensure adequate heat dissipation. The module should be driven by a constant‑current laser driver and operated within the specified temperature limits. This manual is written in Chinese.
Covers: Data Sheet · Working Parameters · Key Parameters · Applications · Technical Specifications · Mechanical Drawing
Skyera Laser TY-9XX+/-10NM-55.0W-25C-2PIN-1064-0.22NA-DF-01 Data Sheet
The TY-9XX series is a multimode semiconductor laser diode module designed for high‑output (55 W) and high stability applications. It features a compact 2‑pin sealed package and is RoHS‑compliant, targeting medical, printing, fiber‑laser pump sources and material‑processing markets.
Key specifications include a center wavelength range of 915/940/975 nm, numerical aperture of 0.22, spectral width of 4‑7 nm, and conversion efficiency of 45 %. The module operates at a heatsink temperature of 25 °C with a thermal resistance below 1 °C·W⁻¹, and it supports storage from –30 °C to 70 °C and operation from 15 °C to 55 °C. This manual is written in Chinese.
Covers: Data Sheet Overview · Operating Parameters · Key Parameters · Applications · Specifications
Skyeralaser TY-ME24-976+/-03NM-350.0W-25C-1064 -0.22NA Multimode Semiconductor Laser Diode Module Data Sheet
The Skyeralaser TY-ME24 series is a high‑output, uncooled multimode semiconductor laser diode module designed for medical, direct‑application, fiber‑laser pump and material‑processing uses. It features a compact, stable design with a 0.22 NA, 200 µm double‑clad fiber and a 2‑pin sealed package.
Key specifications include up to 350 W output power, a center wavelength of 976 nm, and operation between 15 °C and 55 °C. The sheet also provides mechanical drawings and safety instructions such as avoiding eye exposure, using anti‑static handling, and ensuring proper heat dissipation. This manual is written in Chinese.
Covers: Operating Parameters · Key Parameters · Applications · Specifications · Mechanical Drawing · Usage Instructions
Latest Skyeralaser manuals
Skyeralaser TD22 Series Uncooled Multimode Laser Module TY-TD-940+/-10NM-200.0W-25C-1064-0.22NA Data Sheet
Datasheet 2 pages · 622 KB · ZHTechnical data sheet for Skyeralaser TD22 series uncooled multimode laser module with 200 W output, 940 nm wavelength and 0.22 NA.
Skyera Laser TY-9XX+/-10NM-55.0W-25C-2PIN-1064-0.22NA-DF-01 Data Sheet
Datasheet 1 pages · 135 KB · ZHThe Skyera Laser TY-9XX+/-10NM-55.0W-25C-2PIN-1064-0.22NA-DF-01 data sheet lists its 55 W output, 0.22 NA, multimode fiber coupling and key specifications…
Skyeralaser TY-ME24-976+/-03NM-350.0W-25C-1064 -0.22NA Multimode Semiconductor Laser Diode Module Data Sheet
Datasheet 2 pages · 311 KB · ZHData sheet for Skyeralaser TY-ME24 multimode semiconductor laser diode module, detailing specifications, dimensions, and usage guidelines.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in Skyeralaser manuals
What is the recommended operating temperature range for the module?
The module is rated for operation between 15 °C and 55 °C.
How should the module be connected when the working current exceeds 6 A?
Use a soldered connection close to the pin base, keep the soldering temperature below 260 °C and the soldering time under 10 seconds.
What is the output power of the TY-9XX module?
The module delivers a maximum output power of 55 W.
From: Skyera Laser TY-9XX+/-10NM-55.0W-25C-2PIN-1064-0.22NA-DF-01 Data Sheet
What are the operating temperature limits?
The device operates between 15 °C and 55 °C.
From: Skyera Laser TY-9XX+/-10NM-55.0W-25C-2PIN-1064-0.22NA-DF-01 Data Sheet
What safety precautions are required when using the laser module?
Avoid laser exposure to eyes and skin, use anti‑static measures during transport and storage, ensure good heat dissipation, and use coated jumpers to reduce fiber end‑face reflections.
What is the recommended operating temperature range?
The module should be operated between 15 °C and 55 °C.
