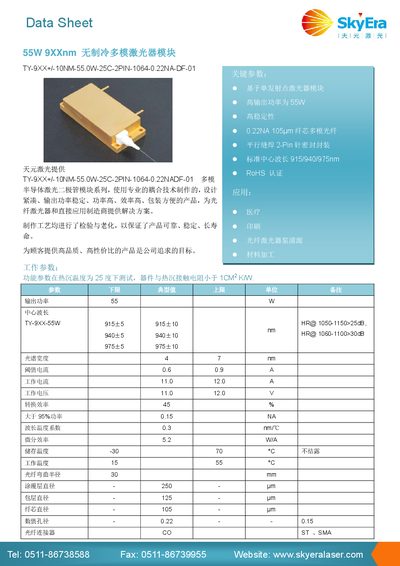

The Skyera Laser TY-9XX+/-10NM-55.0W-25C-2PIN-1064-0.22NA-DF-01 data sheet lists its 55 W output, 0.22 NA, multimode fiber coupling and key specifications…
The TY-9XX series is a multimode semiconductor laser diode module designed for high‑output (55 W) and high stability applications. It features a compact 2‑pin sealed package and is RoHS‑compliant, targeting medical, printing, fiber‑laser pump sources and material‑processing markets.
Key specifications include a center wavelength range of 915/940/975 nm, numerical aperture of 0.22, spectral width of 4‑7 nm, and conversion efficiency of 45 %. The module operates at a heatsink temperature of 25 °C with a thermal resistance below 1 °C·W⁻¹, and it supports storage from –30 °C to 70 °C and operation from 15 °C to 55 °C. This manual is written in Chinese.
| Output Power | 55 W |
|---|---|
| Spectral Width | 4‑7 nm |
| Threshold Current | 0.6‑0.9 A |
| Working Current | 11.0‑12.0 A |
| Working Voltage | 11.0‑12.0 V |
| Conversion Efficiency | 45 % |
| Storage Temperature | -30 °C to 70 °C |
| Operating Temperature | 15 °C to 55 °C |
| Fiber Core Diameter | 105 µm |
The module delivers a maximum output power of 55 W.
The device operates between 15 °C and 55 °C.
