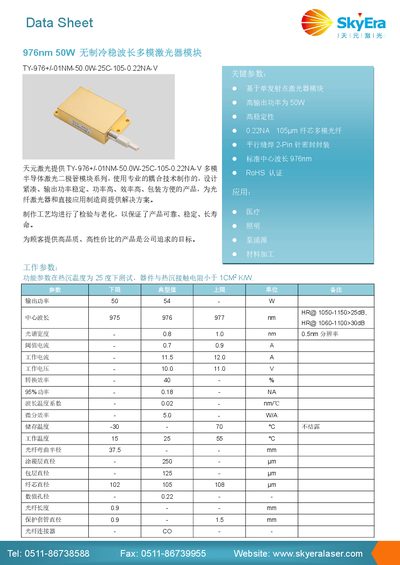

The Skyeralaser TY-976+/-01NM-50.0W-25C-105-0.22NA-V data sheet details a 976 nm 50 W multimode laser module with specifications, dimensions, and usage…
The TY-976+/-01NM-50.0W-25C-105-0.22NA-V is a 976 nm, 50 W multimode semiconductor laser diode module designed for medical, lighting, pump source, and material processing applications. It features a single‑emission point design, high stability, and a 0.22 NA 105 µm multimode fiber coupling.
The data sheet provides electrical and optical parameters, mechanical drawing, and safety/handling instructions. Key points include operating current 11.5‑12 A, operating voltage 10‑11 V, conversion efficiency around 40 %, and recommended operating temperature range of 15 °C to 55 °C. Proper antistatic handling, heat dissipation, and welding practices are required for reliable operation. This manual is written in Chinese.
| Output Power | 50‑54 W |
|---|---|
| Center Wavelength | 976 nm |
| Spectral Width | 0.8‑1.0 nm |
| Threshold Current | 0.7‑0.9 A |
| Working Current | 11.5‑12.0 A |
| Working Voltage | 10.0‑11.0 V |
| Conversion Efficiency | 40 % |
| Numerical Aperture (NA) | 0.22 |
| Fiber Core Diameter | 105 µm (typical) |
| Operating Temperature Range | 15 °C – 55 °C |
The laser module should be operated between 15 °C and 55 °C.
Typical output power is 50 W, with a maximum of 54 W.
The module uses a multimode fiber with a core diameter of 105 µm and a numerical aperture of 0.22.
