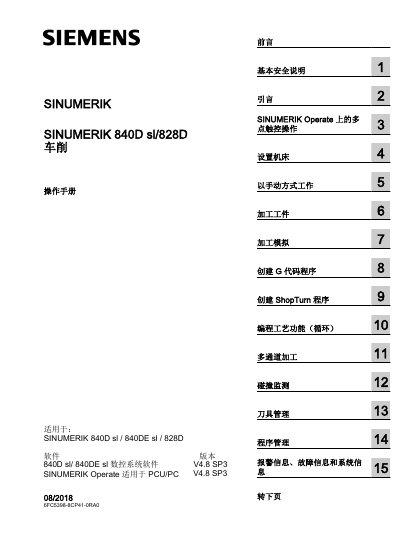

Siemens SINUMERIK 840D sl/828D Turning Operation Manual

About this manual

This document is the operation manual for the SINUMERIK 840D sl/828D turning system, specifically for software versions V4.8 SP3 of the 840D sl/840DE sl/828D CNC systems. It is designed for operators using the SINUMERIK Operate interface on PCU/PC V4.8 SP3. This manual is written in Chinese.

What's inside

• Basic Safety Instructions
• Introduction
• Multi-touch Operation on SINUMERIK Operate
• Setting Up the Machine
• Manual Machining
• Workpiece Machining
• Process Simulation
• G-Code Program Creation
• ShopTurn Program Creation
• Alarm and Fault Information

Frequently asked questions

What software versions does this manual cover?

This manual applies to SINUMERIK 840D sl / 840DE sl / 828D software version 840D sl/ 840DE sl CNC system software V4.8 SP3 and SINUMERIK Operate version V4.8 SP3.

Who is the intended audience for this document?

This document is intended for operators of lathes that run on SINUMERIK Operate software.

What is the primary purpose of this operation manual?

The manual helps users become familiar with the operation unit and commands, and allows them to react specifically and take appropriate measures when faults occur.
