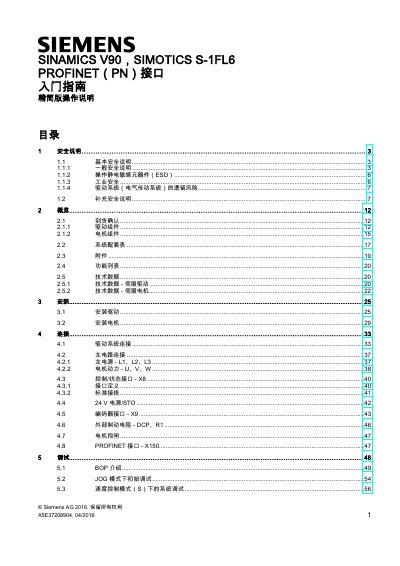

Siemens SINAMICS V90/SIMOTICS S-1FL6 PROFINET Interface Introduction Guide

About this manual

This manual serves as a concise guide (精简版操作说明) for the PROFINET interface of the SINAMICS V90 servo drive and SIMOTICS S-1FL6 servo motor. It covers essential topics including safety instructions, system overview, installation procedures, electrical connections, commissioning steps, parameter settings, and diagnostic information.

The document is structured to assist users in safely setting up and operating the drive system. Key sections include detailed safety warnings regarding high voltage and ESD protection, step-by-step instructions for mounting the drive and motor, wiring diagrams for control interfaces (X8) and PROFINET connections (X150), and guidance on initial debugging via JOG mode or speed control modes. This manual is written in Chinese.
