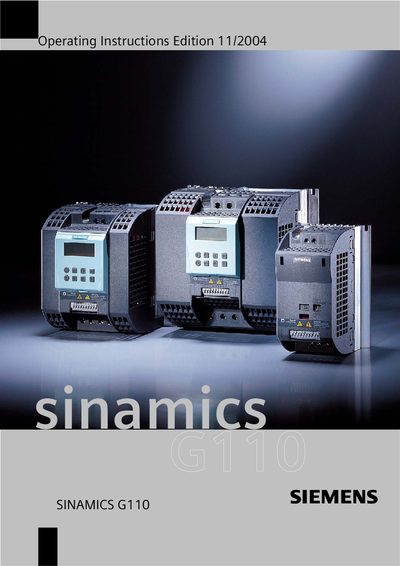

Siemens SINAMICS G110 Inverter Operating Instructions

About this manual

This document serves as the operating instructions for the SINAMICS G110 inverter, covering essential topics such as installation, commissioning, control modes, system parameters, troubleshooting, specifications, and available options. It is designed to provide users with quick access to basic information required to set up the device for operation.

What's inside

• Installation
• Commissioning
• Using the SINAMICS G110
• System Parameters
• Troubleshooting
• Specifications
• Options
• Electro-Magnetic Compatibility

Frequently asked questions

What is the power rating range for this inverter?

The SINAMICS G110 covers a power rating of 120 W to 3 kW.

Which firmware versions are covered in this manual?

This document applies to Firmware Version 1.0 and 1.1.

What type of RCD is required for the inverter?

An RCD type B must be used, though type A is permissible if connected to a single-phase grounded-neutral star mains network.
