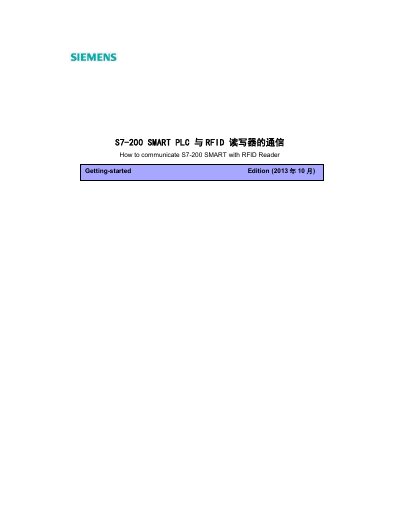

This guide explains how to communicate the Siemens S7-200 SMART PLC with an RF260R RFID reader using the 3964(R) protocol and the RFID_smart_library.
This document provides a step-by-step guide on establishing communication between the Siemens S7-200 SMART PLC and the SIMATIC RF260R RFID reader. It details the hardware setup, including the use of SB CM01 RS485/232 communication boards or RS-232 adapters.
The guide covers the 3964(R) communication protocol structure and provides specific instructions on using the `RFID_smart_library` within STEP7-Micro/WIN SMART. It includes procedures for initializing, resetting, reading tags, and writing data to RFID cards. This manual is written in Russian.
| Frequency | 13.56 MHz |
|---|---|
| Standard | ISO 15693 |
| Memory Capacity (EEPROM) | 992 records |
| Memory Capacity (FRAM) | 2000 records |
The `RFID_init` function is used to initialize the S7-200 SMART communication with the RF260R.
Error code 1 indicates that the initialization was aborted due to a timeout.
