The Siemens MICRO MASTER and MIDI MASTER operating instructions provide safety guidelines, installation steps, parameter settings, and fault code…
The Siemens MICRO MASTER and MIDI MASTER are a family of variable‑speed AC drive inverters ranging from 250 W to 37 kW, available in single‑phase and three‑phase versions with optional IP54 protection.

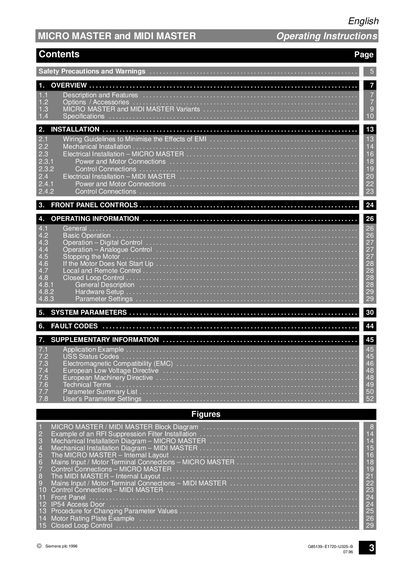

This operating instructions manual covers safety precautions, wiring and mechanical installation, front‑panel controls, operating modes, parameter settings, fault codes and supplementary information such as EMC compliance and technical terms.
| Input voltage range (single‑phase) | 1 AC 230 V ±15 % |
|---|---|
| Motor output rating (single‑phase) | 1250 W |
| Continuous output (single‑phase) | 660 VA |
| Nominal output current (single‑phase) | 1.5 A |
| Recommended mains fuse (single‑phase) | 10 A |
| Dimensions (single‑phase) | 112 × 182 × 113 mm |
| Weight (single‑phase) | 1.9 kg |
| Inverter efficiency | 97 % |
| Output frequency range | 0 Hz to 650 Hz |
| Overload capability | 150 % for 60 s |
Only qualified personnel should work on the equipment, warning signs must be kept legible, the system must be grounded, and the dc‑link capacitor can stay charged for minutes after power removal, so the unit should not be opened until five minutes after power is off.
The inverters support remote control via an RS485 serial link using the USS protocol, and up to 31 inverters can be networked together.
The manual specifies a recommended mains fuse of 10 A for the 250 W MICRO MASTER inverter.
The inverters can handle an overload of 150 % of rated current for up to 60 seconds.
