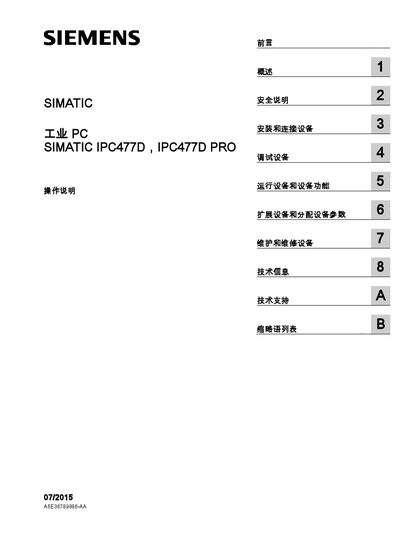

The Siemens IPC477D and IPC477D PRO industrial PC operation manual provides installation, safety, configuration, and maintenance instructions.
This manual covers safety instructions, installation and connection procedures, and initial debugging for the SIMATIC IPC477D and IPC477D PRO industrial PCs. It details hardware options such as touch screens, PCIe and CFast cards, and power connections.
Further sections describe operation of the devices, expansion module configuration, maintenance tasks like battery and storage replacement, and technical information including BIOS settings, AMT activation, and certification details. This manual is written in Chinese.
| Ingress Protection | IP65 (mounting), IP66 (adjusted) |
|---|---|
| Enclosure Type | 4X / 12 (indoor use only) |
| AC Input Voltage | 100‑240 VAC |
| DC Input Voltage | 24 V DC |
| Display Options | 12", 15", 19", 22" capacitive or resistive touch screens |
| Expansion Slots | PCIe card, CFast card |
A warning triangle is used to mark hazards that could cause personal injury; other symbols without the triangle indicate only property damage.
Use the provided installation brackets or supports and ensure all fasteners are correctly sized so the mounting achieves the IP65 protection level.
