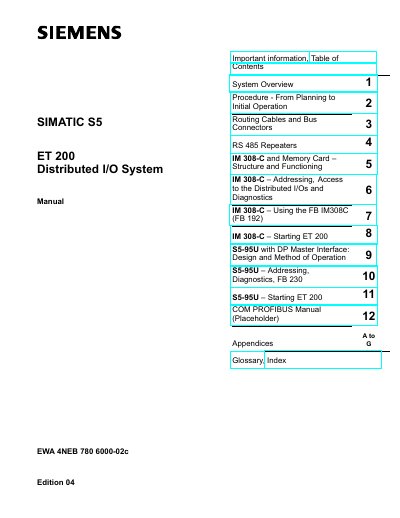

Siemens ET 200 Distributed I/O System User Manual

About this manual

This document serves as a comprehensive guide for setting up and operating the ET 200 distributed I/O system. It details procedures from initial planning to commissioning, including cable routing, bus connector installation, and RS 485 repeater usage.

The manual specifically addresses the configuration of the IM 308-C master interface module and its interaction with S5-95U programmable controllers equipped with a DP master interface. It provides instructions on parameterization using COM PROFIBUS software and includes guidance on diagnostics, addressing, and network component setup.

What's inside

• System Overview
• Procedure - From Planning to Initial Operation
• Routing Cables and Bus Connectors
• RS 485 Repeaters
• IM 308-C Structure and Functioning
• Addressing and Diagnostics
• Using the FB IM308C
• Starting ET 200
• S5-95U with DP Master Interface
• Standards, Certificates and Approvals

Specifications

Frequently asked questions

What personnel are required to install the ET 200 system?

Only qualified personnel who are authorized to commission, ground, and tag circuits should be allowed to install and work on this equipment.

Does this manual cover COM PROFIBUS version 5.0?

No, the description of COM PROFIBUS as of version V5.0 is not included; there is a separate manual available on the CD-ROM.

Which standards does the ET 200 system fulfill?

The components described in this manual fulfill the requirements and criteria of IEC 1131, Part 2 and the requirements for CE marking.
