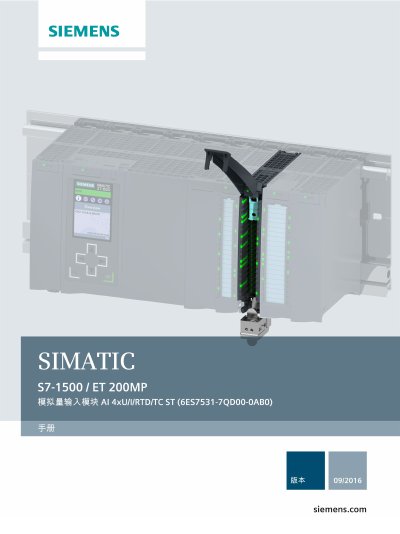

Device manual for the Siemens SIMATIC S7-1500/ET 200MP AI 4xU/I/RTD/TC ST analog input module, covering wiring, parameters, diagnostics and technical data.
This manual provides the information needed to configure, wire, and maintain the AI 4xU/I/RTD/TC ST analog input module for the SIMATIC S7‑1500/ET 200MP system. It includes safety notices, product overview, wiring diagrams, parameter tables, address space definitions, and diagnostic alarm handling.
The document is organized into sections on product overview, wiring (including schematics), parameters and address space, interrupt and diagnostic alarms, technical data, and dimension drawings. It also references related Siemens online resources for software updates and additional technical support. This manual is written in Chinese.
| Supported thermocouple types | B, E, J, K, N, R, S, T |
|---|
A warning triangle is used to indicate a safety warning.
Wiring diagrams are in section 3.1, starting on page 14.
Diagnostic alarms are described in section 5, covering status display, interrupts and alarm details.
