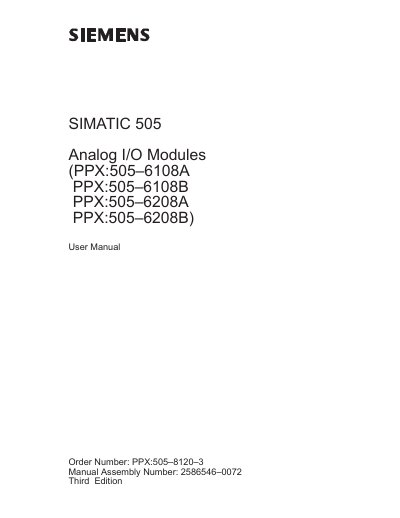

This manual provides instructions for installing, wiring, and calibrating the SIMATIC 505 Analog Input and Output modules (PPX:505–6108A/B and PPX:505–6208A/B).
This document serves as a user manual for the SIMATIC 505 Series Analog I/O Modules, specifically covering models PPX:505–6108A, PPX:505–6108B, PPX:505–6208A, and PPX:505–6208B. It details the operational principles of analog input and output signals, including signal translation for voltage and current inputs.
The guide covers practical installation procedures such as wiring guidelines, terminal block configuration, and module insertion into the controller chassis. Additionally, it provides comprehensive instructions for configuring I/O parameters, troubleshooting common issues via status indicators, and performing calibration on both input and output modules.
| Number of input points | 8, single-ended |
|---|---|
| Module width | Single-wide |
| Operating temperature | 0 to 60° C (32 to 140 °F) |
| Storage temperature | -40 to +70 °C (-40 to 158 °F) |
| Voltage accuracy | ±0.82% of full scale over operating range |
| Current accuracy | ±1.25% of full scale over operating range |
| Analog-to-digital conversion | 12 bits plus sign |
| Update time | 250 ms max (for all channels) |
The manual covers models PPX:505–6108A, PPX:505–6108B, PPX:505–6208A, and PPX:505–6208B.
The maximum operating temperature is 60° C (140 °F).
The conversion resolution is 12 bits plus sign.
