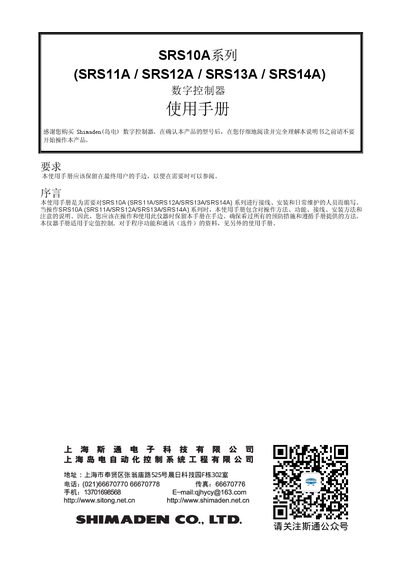

User manual for Shimaden SRS10A series digital controller covering installation, wiring, settings and troubleshooting.
The Shimaden SRS10A Series Digital Controller is a temperature‑control device with configurable PID, event and communication functions. The manual provides safety instructions, installation steps, wiring diagrams, panel description and detailed parameter settings.
It also includes technical specifications, communication options, optional CT and external‑input modules, and a full troubleshooting guide to help users maintain reliable operation in industrial environments.
| Input Voltage | 100‑240 V AC |
|---|---|
| Power Consumption (max) | 11 VA (SRS11A on 100‑240 V AC) |
| Operating Temperature Range | -10 °C to 50 °C |
| Maximum Relative Humidity | 90 % RH |
| Maximum Altitude | 2000 m |
| Communication Interface | RS‑485 (EIA standard) |
| Supported Communication Protocols | Shimaden standard / MODBUS ASCII, RTU |
| Terminal Screw Torque | 0.5 N·m (5 kgf·cm) |
The recommended tightening torque is 0.5 N·m (5 kgf·cm).
The controller must be used indoors, at altitudes up to 2000 m, with ambient temperature from –10 °C to 50 °C and humidity up to 90 % RH.
It supports Shimaden’s standard protocol and MODBUS in both ASCII and RTU modes.
The maximum power consumption is 11 VA for the SRS11A model.
