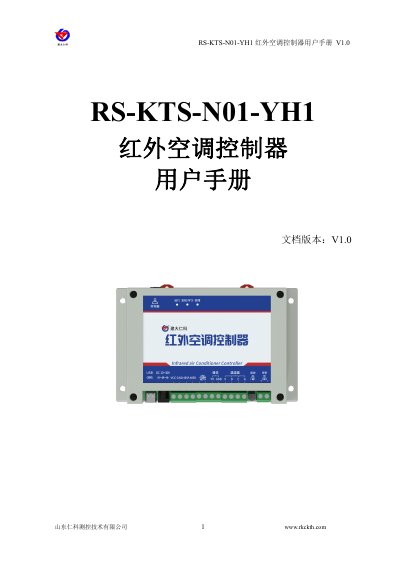

This manual covers the installation, configuration, and operation of the RS-KTS-N01-YH1 infrared air conditioner controller, including wiring, APP setup…
The RS-KTS-N01-YH1 is a multifunctional infrared air conditioner controller designed for automatic temperature and humidity control in environments such as classrooms, dormitories, and offices. It features an infrared learning function capable of storing up to 139 remote control codes, allowing it to replace standard remotes. The device supports remote monitoring and control via the standard ModBus-RTU protocol and a dedicated mobile application. This manual is written in Chinese.
| Power Supply | 7-30V |
|---|---|
| Communication Interface | Standard ModBus protocol 485 output |
| Configuration Interface | Type-C |
| Operating Temperature | -20℃～+60℃ |
| Max Infrared Codes | 139 groups |
| Max Communication Distance | 2000 meters |
| Temperature Range | -40~80℃ |
| Humidity Range | 0~100%RH |
| Storage Capacity | 65535 records |
The device can learn up to 139 groups of infrared codes.
The default password is 12345678.
Available baud rates include 1200, 4800, 9600, 19200, 38400, 57600, and 115200.
Yes, the device can be installed on a standard 35mm DIN rail.
