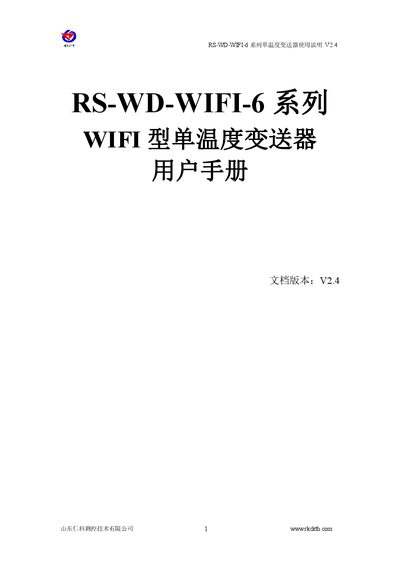

User manual for the Shandong Renke RS-WD-WIFI-6 Series single-temperature transmitter, covering installation, configuration, and monitoring platform…
This manual describes the RS-WD-WIFI-6 Series single-temperature transmitter, an industrial-grade device that collects temperature data and uploads it to a server via Wi-Fi. The device features high-precision measurement, built-in alarm modules, and supports various probe types for different temperature ranges. It is designed for wall-mounted installation and can be configured via USB-to-485 connection. This manual is written in Chinese.
| Power Supply | 10~30VDC |
|---|---|
| Communication Interface | Standard Wi-Fi (2.4GHz) |
| Measurement Accuracy (Standard) | ±0.7°C (at 25°C) |
| Measurement Range (Ultra-Low Temp Probe) | -100~+200°C |
| Measurement Range (Ultra-High Temp Probe) | 0~300°C |
| Measurement Range (Ultra-Wide Low Temp Probe) | -200~+200°C |
| Data Upload Frequency | 1S~10000S/次 |
| Internal Storage Capacity | 65000 groups |
The device supports a wide voltage supply of DC 10V to 30V.
Configuration is performed by connecting a USB-to-485 adapter to the device and a computer.
The series offers ultra-low temp probes (-100~+200°C), ultra-high temp probes (0~300°C), and ultra-wide low temp probes (-200~+200°C).
Yes, it can connect to free local monitoring software and environmental monitoring cloud platforms.
