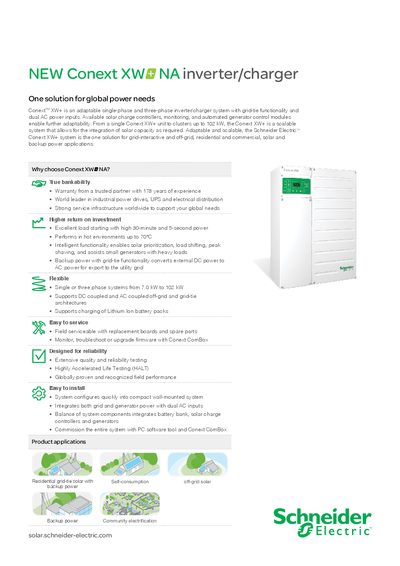

A scalable single-phase and three-phase inverter/charger system for grid-interactive and off-grid applications with solar charge control.
The Schneider Electric Conext XW+ is an adaptable inverter/charger system designed for both single-phase and three-phase configurations. It supports grid-tie functionality, solar charge control, and backup power capabilities, making it suitable for residential, commercial, and community electrification applications ranging from a single unit to clusters up to 102 kW.
| Output power (continuous) at 25°C | 5500 W / 6800 W |
|---|---|
| Maximum output current | 82 A (120 V); 41 A (240 V) |
| Input DC voltage range | 42 to 60 V (48 V Nominal) |
| Maximum input DC current | 150 A / 180 A |
| Charger Maximum output charge current | 110 A / 140 A |
| Efficiency Peak | 95.7% |
| Operating air temperature range | -25°C to 70°C (-13°F to 158°F) |
| Warranty | 2 or 5 years |
It is used for residential grid-tie solar with backup power, self-consumption off-grid solar, backup power, and community electrification.
Yes, it supports Flooded (default), Gel, AGM, and LiON battery types.
