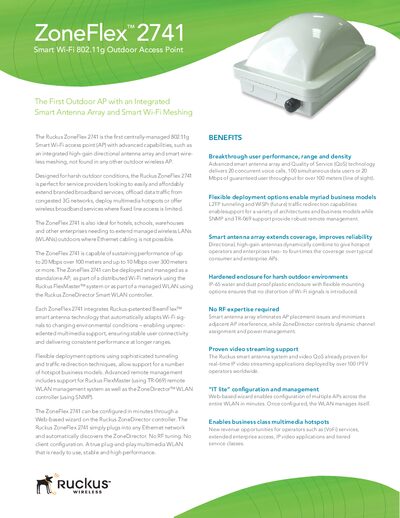

The Ruckus ZoneFlex 2741 is a centrally‑managed 802.11g outdoor access point with a high‑gain smart antenna array, IP‑65 enclosure and PoE support.
The ZoneFlex 2741 is designed for harsh outdoor environments and can be deployed as a standalone AP or as part of a managed WLAN using Ruckus ZoneDirector or FlexMaster. It features the patented BeamFlex smart antenna technology that automatically steers Wi‑Fi signals for optimal coverage and supports up to eight SSIDs with individual QoS and security settings.
The device offers up to 20 Mbps sustained throughput over 100 m (line‑of‑sight) and up to 10 Mbps over 300 m, supports 802.11b/g standards, and includes PoE Class 0 power, an IP‑65 rated enclosure, and flexible mounting options for pole, ceiling or wall installations.
| Standards | 802.11b/g |
|---|---|
| Supported Data Rates | 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps |
| Channels (US/Canada) | 1‑11 |
| Maximum Concurrent Stations | 100 |
| Maximum Throughput (100 m LOS) | 20 Mbps |
| Power over Ethernet | Class 0 (802.3af) |
| Operating Temperature | -20 °C to 65 °C |
| Enclosure Rating | IP‑65 |
| Maximum SSIDs | 8 |
The ZoneFlex 2741 can sustain up to 20 Mbps over 100 m line‑of‑sight.
Up to eight discrete SSIDs can be configured, each with its own settings.
Yes, it supports PoE Class 0 (802.3af) power delivery.
It operates in temperatures from –20 °C to 65 °C.
