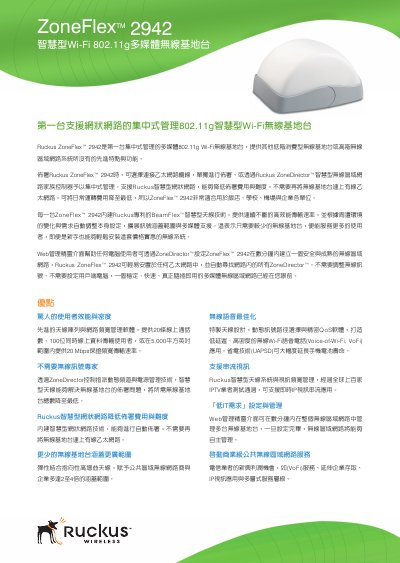

The Ruckus ZoneFlex 2942 Wireless Base Station manual provides setup, management, and specifications for the 802.11g multimedia Wi‑Fi device.
This manual describes the Ruckus ZoneFlex 2942, the first centrally‑managed 802.11g multimedia Wi‑Fi base station. It explains how to deploy the unit via Ethernet or through a ZoneDirector controller, and highlights features such as BeamFlex smart antenna technology, mesh networking, and Vo‑Wi‑Fi support.
The document includes a detailed specifications table covering power requirements, dimensions, antenna options, Ethernet ports, PoE support, and performance limits, as well as instructions for web‑based configuration, CLI, SNMP, and firmware updates. This manual is written in Chinese.
| Power Input | 110-240V AC |
|---|---|
| Power Output | 12V DC, 1A |
| Dimensions (L×W×H) | 19.43 cm × 14.43 cm × 10.16 cm |
| Weight | 680 g |
| Ethernet Ports | 2 ports, auto‑MDX, 10/100 Mbps RJ‑45 |
| PoE Support | 802.3af Power over Ethernet |
| Antenna Types | Up to 4,000 configurable antenna patterns |
| Maximum Simultaneous APs | 100 |
| Maximum Vo‑Fi Users | 20 |
| Supported Wi‑Fi Standards | 802.11b/g (up to 54 Mbps) |
Up to 100 base stations can be deployed simultaneously.
It accepts an input voltage range of 110‑240 V AC.
Yes, it supports 802.3af PoE.
It supports 802.11b and 802.11g with data rates up to 54 Mbps.
