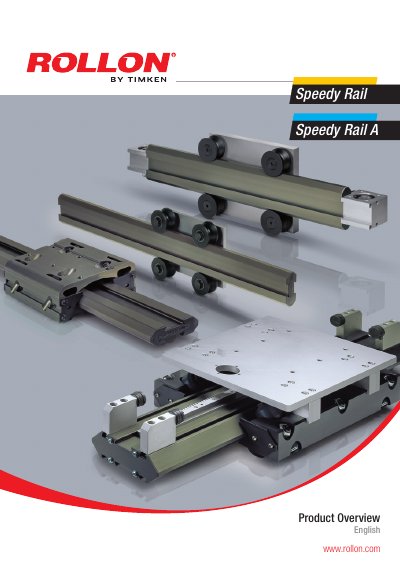

A product overview for the Rollon Speedy Rail A, a self-supporting aluminum linear guide and actuator suitable for various industrial applications.
The Rollon Speedy Rail A is a special self-supporting and self-aligning rail made of extruded aluminum with a deep hard anodized surface treatment. It provides high performance, load capacity, and reliability without requiring maintenance or lubrication. The system is designed to operate quietly and efficiently even in dirty environments.
| Max. working load capacity per carriage | Up to 3,000 Kg |
|---|---|
| Theoretical life | 80,000 Km |
| Raceway hardness | 700 HV |
| Max. running speed | 15 m/s |
| Max. acceleration | 10 m/s² |
| Operating temperature | -30°C / +80°C |
No, the combination of aluminum profiles with rollers coated in plastic compound does not require any lubrication.
The swivel mounting of the slider guarantees an axial variation of up to ± 4 mm.
Yes, the system is available with belt or rack and pinion drives in addition to the version with the idle carriage.
