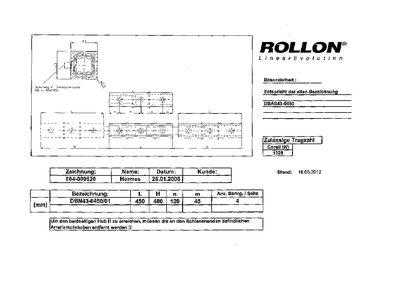

Rollon DBAS43-0450 Linear Guide Datasheet

About this manual

This document is a technical datasheet for the Rollon DBAS43-0450 linear guide. It provides specific engineering data such as permissible load values and dimensional details.

The text indicates that this model corresponds to an older designation (Entspricht der alten Bezeichnung) and includes specifications like a bore diameter of 4B0 and a length of 450 mm. This manual is written in German.

What's inside

• Zulassige Tragzahl
• Corad
• Bezeichnund
• Anz. Bohrg.

Frequently asked questions

What is the maximum allowable load for the DBAS43-0450 linear guide?

The permissible load capacity is 1328 N.

What are the stated dimensions for the DBAS43-0450 model?

The guide has a length of 450 mm, a width of 40 mm, and a height of 320 mm.

How do you achieve the double-sided stroke on this guide?

You must remove the retaining screws located at both ends of the slide.
