This document provides technical data and features of Rollon's Teleskopschiene products. Horizontal installation is recommended, while vertical installation is available upon request. External end stops are recommended. ASN, DSD, DE, and DBN series have bi-directional stroke, DMS series is available upon request. Special strokes are available upon request. All load capacity specifications are based on Teleskopschiene. All load capacity specifications are based on continuous operation. The life calculation refers exclusively to the loaded ball rows. Pay attention to right and left side for DSB, DMS, and DRT types. DRT 43 is to be fastened with Torx® screws (special version, included). Use 10.9 class fastening screws for all Teleskopschiene. Internal stops are for stopping the unloaded runner and ball cage. Please use external stops for a loaded system.

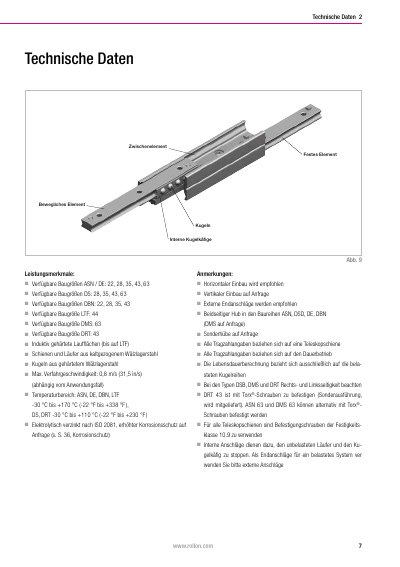

This document provides technical specifications for Rollon intermediate elements, specifically the DEF, DEV, and DEM series. It details available sizes for various series (ASN, DE, DS, DBN, LTF, DMS, DRT), material properties such as induction-hardened running surfaces, and operating conditions including maximum travel speed and temperature ranges. The text notes that horizontal installation is recommended and that all load ratings refer to a telescopic rail in continuous operation. This manual is written in German.
| Max. travel speed | 0.8 m/s (31.5 in/s) |
|---|---|
| Temperature range (ASN, DE, DBN, LTF) | -30 °C to +170 °C |
| Temperature range (DS, DRT) | -30 °C to +110 °C |
| Available sizes ASN / DE | 22, 28, 35, 43, 63 |
| Available sizes DS | 28, 35, 43, 63 |
| Available sizes DBN | 22, 28, 35, 43 |
| Available sizes DMS | 63 |
| Available sizes DRT | 43 |
Three versions are available: DEF with threaded holes, DEV with countersunk holes, and DEM with both variants.
Horizontal installation is recommended, while vertical installation is available upon request.
Fastening screws of strength class 10.9 must be used for all telescopic rails.
