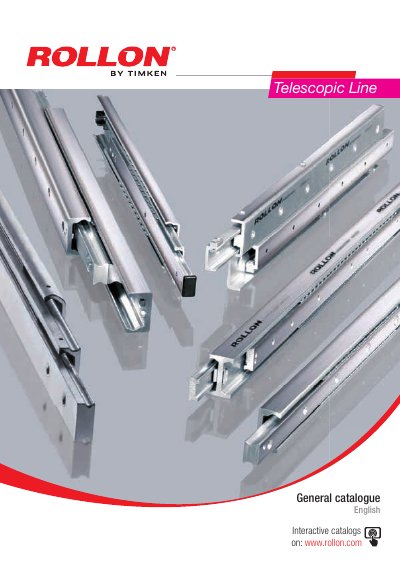

Technical data sheet for Rollon's telescopic rail series, covering models, dimensions, load capacity and installation details.
The Rollon Telescopic Rail data sheet presents a comprehensive overview of the product family, including product explanations, cross‑section drawings, technical data, dimensions, load capacities and ordering information for a wide range of models such as TR‑2, TR‑5, TR‑7 and others. It also provides guidance on selection, installation, lubrication and anticorrosive protection.
The document includes performance characteristics, material specifications, temperature ranges and recommended mounting practices for both horizontal and vertical installations. Technical notes on custom strokes, external end stops and service life calculations are also provided.
| Maximum operating speed | 0.8 m/s |
|---|---|
| Temperature range (DE series) | -20 °C to +50 °C |
| Load capacity basis | Based on a pair of telescopic rails |
The maximum operating speed is 0.8 m/s (31.5 in/s) depending on the application.
The DE series is rated for temperatures from –20 °C to +50 °C.
