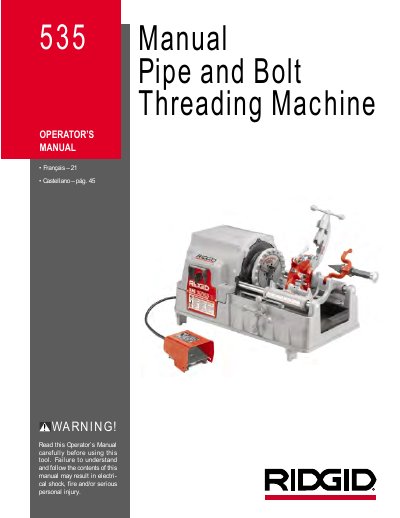

The RIDGID 535 Pipe and Bolt Threading Machine Operator Manual provides safety guidelines, setup, operation, and maintenance instructions.
This manual covers all safety information for the RIDGID 535 Threading Machine, including general, electrical, and personal safety, as well as specific warnings for foot‑switch and machine operation. It also details proper machine assembly, mounting to a stand or bench, and daily inspection procedures to keep the equipment safe and reliable.
The document explains how to operate the machine with mounted tools, covering pipe and bolt threading, cutting, reaming, and die installation. Technical specifications such as threading capacity, motor type, horsepower, voltage, and weight are listed, and maintenance instructions describe lubrication, oil system care, and part replacement.
| Threading Capacity (Pipe) | 1/8" through 2" |
|---|---|
| Threading Capacity (Bolt) | 1/4" through 2" |
| Motor Type | Universal |
| Horsepower | 1/2 HP |
| Voltage | 120V Single Phase AC 25‑60 Hz (230 V optional) |
| Current (36 RPM) | 15 A |
| Weight | 260 lb (less die head & dies) |
Operators should wear eye protection, a dust mask, non‑skid safety shoes, a hard hat, and hearing protection as appropriate.
Press the lock lever on the foot switch as shown in Figure 1 to prevent accidental starting.
The reservoir holds approximately seven (7) quarts of thread‑cutting oil.
