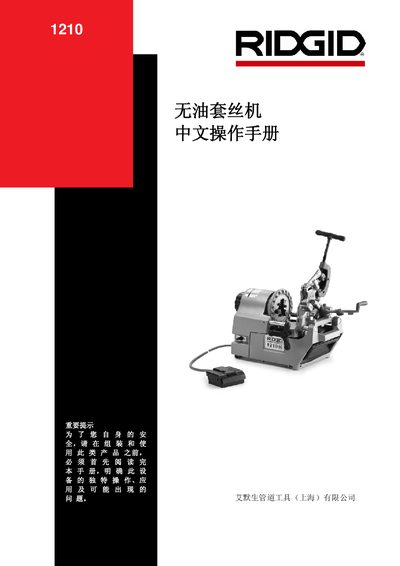

This document is the Chinese operation manual for the 1210 oil-free threading machine, which introduces the operation, application, and possible problems of the equipment. The content includes safety instructions, workplace safety precautions, electrical safety, personal safety precautions, use and maintenance of tools, services, threading machine safety, product overview, technical parameters and standard configuration, machine installation, threading operation steps, maintenance instructions, repairs and services, etc.
The RIDGID 1210 oil‑free pipe threader is a motor‑driven machine for cutting, drilling and threading pipes and rods. It features a cooling system, interchangeable fast‑change and semi‑automatic heads, and can operate in forward and reverse.
The manual provides safety guidelines, installation steps, machine inspection procedures, wiring diagrams, and warranty information to ensure safe and effective operation of the equipment. This manual is written in Chinese.
| Threading capacity | Pipe 12" – 17" |
|---|---|
| Cutting capacity | Pipe 12" – 17" |
| Speed | 25 RPM |
| Power | 1500 W |
| Voltage | 120 V single‑phase AC, 50‑60 Hz (optional 230 V) |
| Current | 6.4 A |
| Weight | 75 lb (27 kg) |
It operates on 120 V single‑phase AC at 50‑60 Hz (230 V optional) and draws about 6.4 A.
