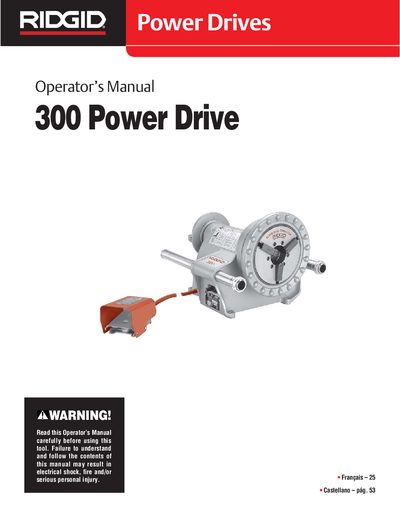

The manual introduces the safe use of the 300 Power Drive machine, including work area safety, electrical safety, personal safety, tool use and maintenance, service, and machine assembly, installation, inspection, and operation instructions.
This manual covers general and specific safety information, including work‑area safety, electrical safety, personal safety, and foot‑switch requirements. It also details proper machine assembly, mounting on the 1206 stand, carriage installation, and routine inspection procedures.
Operational sections describe using hand tools, carriage‑mounted tools, and geared threaders for cutting, reaming, and threading pipe or bolt stock. Maintenance instructions cover lubrication, jaw‑insert replacement, motor brush service, and wiring diagrams, while the warranty section outlines lifetime coverage and service procedures.
| Threading Capacity (Pipe) | 1/2" through 2" |
|---|---|
| Threading Capacity (Bolt) | 1/2" through 2" |
| Geared Threader Capacity | Pipe 2¼" through 6" |
| Operating Speed | 38 RPM or 57 RPM |
| Voltage / Frequency | 120V Single‑Phase AC, 25‑60 Hz (230 V available on request) |
The machine can thread pipe from 1/2" through 2" and bolts from 1/2" through 2".
It operates at either 38 RPM or 57 RPM depending on the selected motor speed.
The standard model runs on 120 V single‑phase AC at 25‑60 Hz, with a 230 V option available on request.
