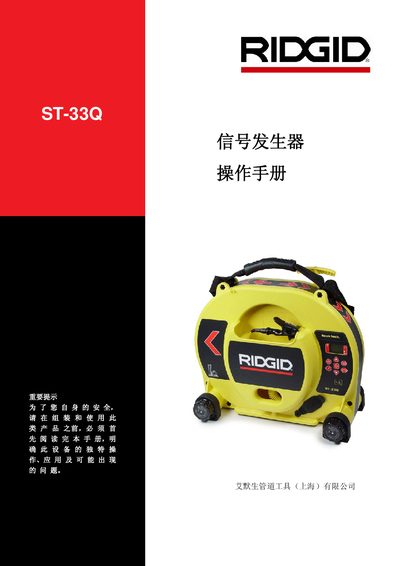

This document is the operation manual for the ST-33Q signal generator, which introduces the features of the product, operating instructions, and safety precautions.
This manual covers safety precautions, product overview, battery installation, and preparation before use of the Ridgid ST-33Q signal generator. It explains the three operating modes—direct connection, inductive, and clamp—and provides detailed instructions for each.
Further sections describe frequency selection, high‑output mode, battery life, warranty terms, and service information, helping users operate and maintain the device safely and effectively. This manual is written in Chinese.
| Power | 5/10 W |
|---|---|
| Battery type | 3 × AA batteries |
| Battery life (continuous) | 17.5 hours |
| Frequency range | 10 Hz – 490 kHz |
| Maximum output current (high mode) | up to 1000 mA |
| Maximum stored frequencies | 40 |
It can run continuously for about 17.5 hours on battery power.
The device covers frequencies from 10 Hz up to 490 kHz.
In high‑output mode the current can be increased to up to 1000 mA.
The ST-33Q can store up to 40 different frequencies.
