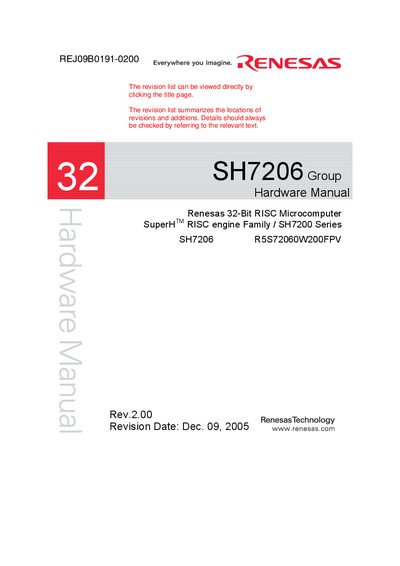

This is a hardware manual for Renesas 32-Bit RISC Microcomputer SuperHTM RISC engine Family / SH7200 Series SH7206 R5S72060W200FPV
This hardware manual is intended for designers and engineers who integrate the Renesas SH7206 32‑bit RISC microcontroller into their applications. It explains the CPU core, system‑control functions, on‑chip peripherals, and electrical characteristics, and includes safety and handling guidelines.
The document contains sections on general precautions, functional module descriptions, a complete list of registers, electrical characteristics, package information, and revision history, allowing users to correctly configure and program the device.
| Core | 32‑Bit RISC Microcomputer |
|---|---|
| Family | SuperH™ RISC engine Family / SH7200 Series |
| Model number | SH7206 R5S72060W200FPV |
The manual revision date is December 9 2005.
