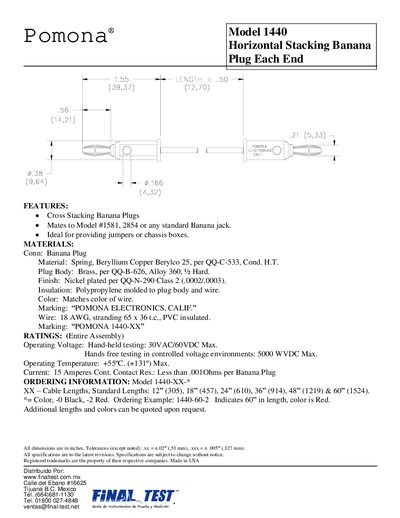

The Pomona 1440 Horizontal Stacking Banana Plug datasheet lists dimensions, materials, electrical ratings, and ordering options.
The Pomona 1440 Horizontal Stacking Banana Plug provides a cross‑stacking design that mates with Model #1581, 2854, or any standard banana jack, making it ideal for jumpers or chassis boxes. It is supplied in various cable lengths and color options for flexible installation.
The plug features a beryllium‑copper spring contact, a brass body with nickel plating, and polypropylene insulation. Electrical ratings include up to 30 VAC/60 VDC hand‑held testing (5000 VDC in controlled environments), a maximum current of 15 A, operating temperature up to +55 °C, and contact resistance under 0.001 Ω. Ordering information specifies length and color codes.
| Operating Voltage (hand‑held testing) | 30 VAC / 60 VDC |
|---|---|
| Operating Voltage (controlled environment) | 5000 VDC |
| Operating Temperature | +55 °C |
| Maximum Current | 15 A |
| Contact Resistance | < 0.001 Ω per plug |
| Wire Gauge | 18 AWG |
| Insulation Material | Polypropylene |
| Finish | Nickel plated |
The plug is rated for a maximum continuous current of 15 amperes.
The plug uses 18 AWG wire with PVC insulation.
Standard lengths are 12, 18, 24, 36, 48, and 60 inches, with color options for each.
The contact spring is made of beryllium copper (Berylco 25).
