The product is 1452 adapter, which is used to connect binding posts to BNC receptacle. It allows single or double banana plugs to be used with equipment having a BNC male.

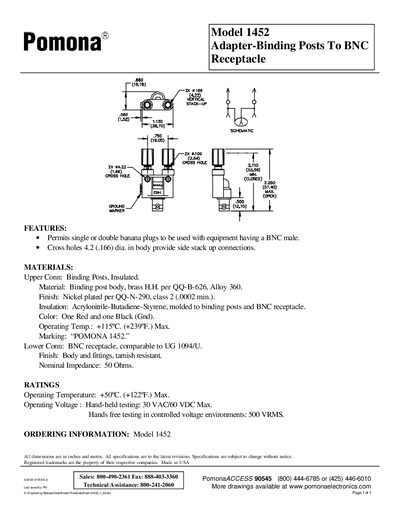

The document describes the Pomona Model 1452, an adapter designed to permit the use of single or double banana plugs with equipment having a BNC male connection. The device features cross holes in the body for side stack-up connections and is constructed from brass binding posts with nickel plating and acrylonitrile-butadiene-styrene insulation.
| Compatible Plugs | Single or double banana plugs |
|---|---|
| Body Material | Brass H.H. per QQ-B-626, Alloy 360 |
| Finish | Nickel plated per QQ-N-290, class 2 |
| Insulation Material | Acrylonitrile- Butadiene-Styrene |
| Color Coding | One Red and one Black (Gnd) |
| Operating Temperature Max | +115°C. (+239°F.) |
| Nominal Impedance | 50 Ohms |
| Operating Voltage (Hand-held) | 30 VAC/60 VDC Max. |
It permits single or double banana plugs to be used with equipment having a BNC male.
The maximum operating temperature is +115°C (+239°F).
