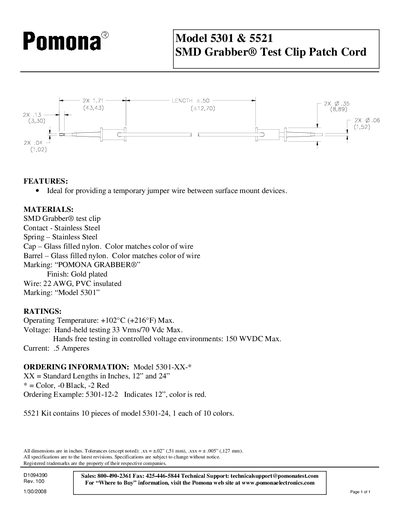

This document describes the features and characteristics of the Model 5301 and 5521 SMD Grabber® Test Clip Patch Cord products. These products are ideal for providing a temporary jumper wire between surface mount devices. The materials used include stainless steel contacts, glass filled nylon cap and barrel, and gold plated finish on the metal parts. The specifications include operating temperature, maximum voltage, and maximum current. Ordering information includes standard lengths and colors.
The Pomona 5301/5521 SMD Grabber® Test Clip Patch Cord is designed for temporary jumper connections between surface‑mount devices. It features stainless‑steel contacts and springs, a glass‑filled nylon barrel and cap that match the wire color, and a gold‑plated finish. The 22 AWG PVC‑insulated wire is available in standard lengths of 12" and 24" with color‑coded options.
Ratings include a maximum operating temperature of +102 °C (+216 °F), hand‑held testing voltage up to 33 Vrms/70 Vde, hands‑free testing up to 150 WVDC, and a current rating of 0.5 A. Ordering codes specify length (XX) and color (‑0 black, ‑2 red), e.g., 5301‑12‑2 for a 12" red cable. The 5521 kit contains ten 24" cables in ten colors.
| Operating Temperature | +102 °C (+216 °F) Max. |
|---|---|
| Hand‑held Testing Voltage | 33 Vrms / 70 Vde Max. |
| Hands‑free Testing Voltage | 150 WVDC Max. |
| Current Rating | 0.5 A |
| Wire Gauge | 22 AWG, PVC insulated |
| Standard Lengths | 12" and 24" |
| Finish | Gold plated |
The patch cord can operate up to +102 °C (+216 °F).
Hand‑held testing is rated for up to 33 Vrms or 70 Vde.
The cable uses 22 AWG wire with PVC insulation.
Use the ordering code 5301‑12‑2, where “‑2” indicates the red color.
