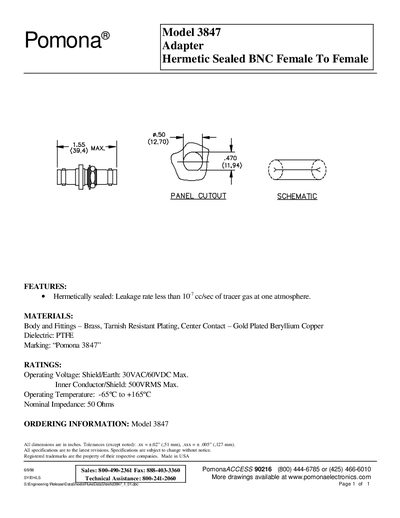

This document provides the technical specifications of Pomona 3847 adapter, including dimensions, materials, features, ratings, and ordering information.
The document describes the Pomona Model 3847, a hermetically sealed adapter connecting two BNC female connectors. It is constructed with brass body and fittings featuring tarnish-resistant plating, a gold-plated beryllium copper center contact, and PTFE dielectric.
| Operating Voltage (Shield/Earth) | 30VAC/60VDC Max. |
|---|---|
| Operating Voltage (Inner Conductor/Shield) | 500VRMS Max. |
| Operating Temperature | -65°C to +165°C |
| Nominal Impedance | 50 Ohms |
The body and fittings are made of brass with tarnish-resistant plating.
The center contact is gold plated beryllium copper.
