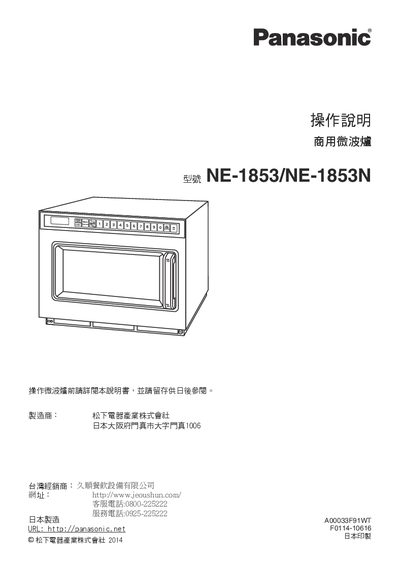

Panasonic NE-1853/NE-1853N commercial microwave oven user manual with safety, operation, and technical specifications.
This manual provides safety guidelines, installation requirements, and detailed operating instructions for the Panasonic NE-1853/NE-1853N commercial microwave oven. It covers proper grounding, placement, cookware selection, and step‑by‑step procedures for manual single‑stage, multi‑stage, and memory‑key heating functions.
The document also includes troubleshooting codes, self‑diagnosis instructions, service information, and full technical specifications such as power output, dimensions, and electrical requirements, helping users maintain and service the appliance safely. This manual is written in Chinese.
| Power Output (High) | 1500 W (1800 W* IEC test) |
|---|---|
| Total Power Rating | 3000 W |
| Frequency | 2450 MHz |
| External Dimensions (W×D×H) | 422 mm × 508 mm × 337 mm |
| Internal Cavity Dimensions (W×D×H) | 330 mm × 310 mm × 175 mm |
| Net Weight | 27.0 kg |
| Voltage | 220 V, 60 Hz, single‑phase |
| Current | 14.5 A |
| Timer Capacity | 30 minutes (digital) |
Unplug the microwave, wait at least 10 seconds, then plug it back in. If the problem persists, follow the code‑specific instructions or contact an authorized service center.
When the display shows “FILt”, remove the air filter and clean it according to the instructions in the manual.
Press the start button within one minute after the previous cycle; the microwave will repeat the last programmed heating time automatically.
