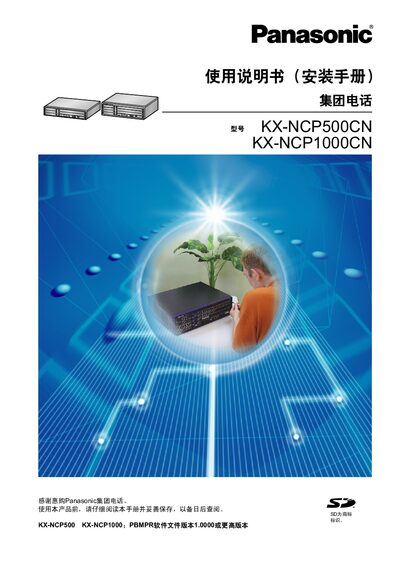

Installation manual for Panasonic KX-NCP500 and KX-NCP1000 group telephone system, covering hardware setup, activation keys, safety and troubleshooting.
This manual provides complete technical reference for the Panasonic KX‑NCP500 and KX‑NCP1000 group telephone systems. It explains system architecture, compatible telephone models, activation‑key handling, and safety requirements before installation.
The guide is organized into sections on system overview, activation‑key installation, hardware installation, maintenance‑console configuration, and fault troubleshooting. It also includes detailed specifications for RF signal sources and guidance on data‑backup and security for SD‑card stored information. This manual is written in Chinese.
| 2.4 GHz signal source frequency range | 2401 MHz – 2480 MHz |
|---|---|
| 2.4 GHz signal source power output | 0.004 W to 0.4 W |
| DECT 6.0 frequency range | 1881 MHz – 1898 MHz |
| DECT 6.0 power output | < 0.25 W |
| DECT 6.0 (6.0) frequency range | 1920 MHz – 1930 MHz |
| DECT 6.0 (6.0) power output | < 0.12 W |
