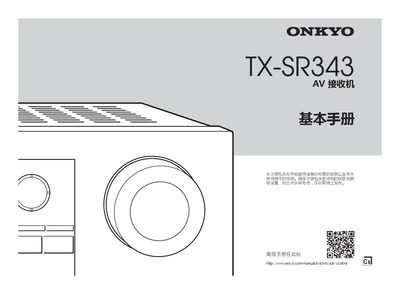

The Onkyo TX‑SR343 AV Receiver User Manual provides setup instructions, connection diagrams, speaker configuration, HDMI and Bluetooth settings, and full…
This manual covers everything needed to install and operate the TX‑SR343 AV receiver. It explains how to connect the TV, Blu‑ray/DVD players, game consoles, streaming boxes, and other sources via HDMI, component, composite, or digital audio cables, and describes the front‑panel controls and remote functions.
Additional sections detail speaker wiring, Bluetooth pairing, AM/FM tuner setup, HDMI CEC/ARC configuration, troubleshooting tips, and a complete specification table for power output, audio/video formats, and regulatory information. This manual is written in Chinese.
| Rated output power | 5 ch × 100 W (6 Ω, 1 kHz) |
|---|---|
| Maximum output power | 5 ch × 120 W (6 Ω, 1 kHz) |
| Dynamic short‑term power | 160 W (3 Ω, front) |
| Speaker impedance | 6 Ω – 16 Ω |
| Bluetooth version | 2.1 + EDR |
| Power consumption (typical) | 370 W |
The receiver can connect up to five speaker channels plus a subwoofer.
Bluetooth works up to about 15 meters line‑of‑sight.
