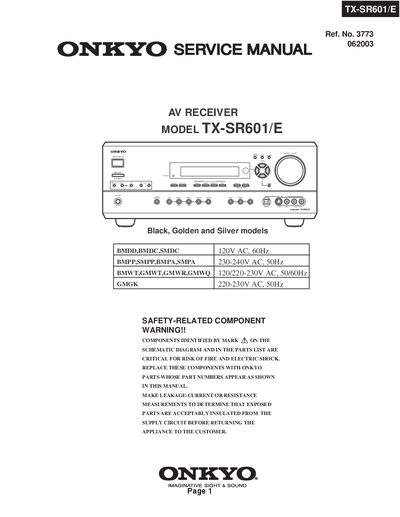

Service manual for the Onkyo TX‑SR601/E AV receiver with specifications, service procedures, and safety information.
This service manual provides detailed specifications, safety warnings, and service procedures for the Onkyo TX‑SR601/E AV receiver. It includes power‑supply information, fuse ratings, voltage‑selector settings, and component part numbers required for repair and maintenance.
The document also describes the front‑panel controls, remote‑controller functions, and wiring diagrams. Instructions for initializing the unit, performing leakage‑current checks, and configuring listening modes are included, along with diagrams of the rear panel connectors and speaker configurations.
| Continuous average power output (FTC) | 85 W per channel min. RMS at 8 Ω |
|---|---|
| Total harmonic distortion (rated power) | 0.08 % |
| Power consumption (USA & Canadian models) | 5.3 A |
| Dimensions (W × H × D) | 435 × 175 × 431.5 mm |
Press and hold the VIDEO‑1 button, then press the STANDBY/ON button; the preset memory and modes will be initialized.
Replace the fuse with the same fast‑operating type; the rating is shown on the marking adjacent to the fuse symbol.
Set the voltage selector switch to match the local power supply voltage (120 V or 220‑230 V) before plugging in the unit.
