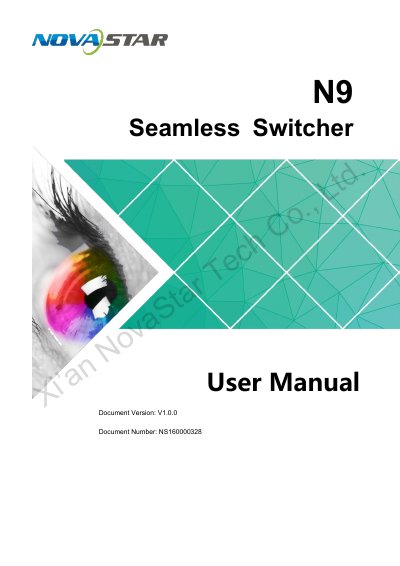

NovaStar N9 Seamless Switcher User Manual

This user manual covers the operation, settings, and specifications of the NovaStar N9 high-performance seamless switcher.

Brand: Nova Star
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 35
File format: PDF
File size: 3.8 MB
Published: 15 October, 2026
Updated: 15 October, 2026
MD5 checksum: A05469716CD03D07B9209109F9A7DBB4
PDF: NovaStar N9 Seamless Switcher User Manual PDF

About this manual

The NovaStar N9 is a high-performance seamless switcher designed for video processing, screen mosaic, and multi-screen display. It supports up to 4K×2K@60Hz video input and can handle up to 9 video inputs across 7 layers. The device features a visualized color LCD screen and distinct button indicators to simplify system control operations.

What's inside

Overview
Features
Appearance
Operations
V-Can Control
C1 Control
Specifications

Specifications

Max Video Input Resolution	4K×2K@60Hz
Number of Video Inputs	9
Number of Layers	7
Max Mosaic Width	8192 pixels
Max Loading Capacity	8,800,000 pixels
Power Supply	AC100V -240V~ 50/60Hz

Frequently asked questions

What is the maximum video input resolution supported?

The N9 supports up to 4K×2K@60Hz video input.

How many video inputs and layers does the N9 support?

The N9 supports 9 video inputs and up to 7 layers.

What is the maximum mosaic width capability?

The maximum mosaic width can be up to 8192 pixels.
