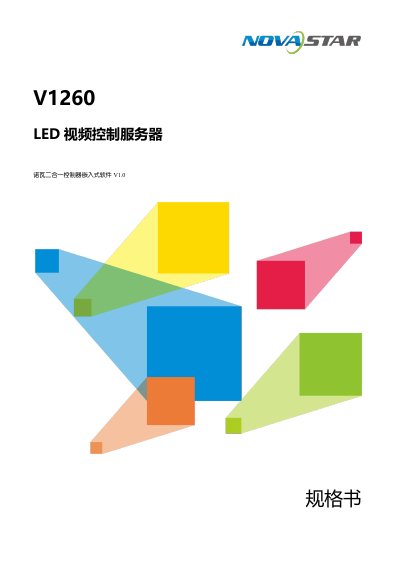

This datasheet details the NovaStar V1260 All-in-One LED video control server, featuring 4K processing, multiple video inputs, and extensive network/fiber…
The NovaStar V1260 is an All-in-One product developed by NovaStar Technology that integrates video processing, video control, and LED screen configuration. It is designed for large fixed installations in government, corporate, and military command centers, utilizing an industrial-grade chassis to adapt to complex operating environments.
The device supports a wide range of video signal inputs, including HDMI 2.0, DVI, and 3G-SDI, and can process ultra-high definition 4K×2K@60Hz images. It features powerful output capabilities via 16 network ports and 4 fiber optic ports, supporting a total load of up to 10.4 million pixels. The V1260 also supports 3D display effects, HDR output, and hardware-based screen calibration. This manual is written in Chinese.
| Video Input Interfaces | 1x HDMI 2.0, 4x DVI, 1x 3G-SDI |
|---|---|
| Network Output Ports | 16x RJ45 |
| Fiber Optic Output Ports | 4x 10G |
| Maximum Pixel Load | 10.4 million pixels |
| Maximum Input Resolution (HDMI) | 3840×2160 @60Hz |
| Maximum Input Resolution (DVI) | 1920×1200 @60Hz |
| Maximum Input Resolution (3G-SDI) | 1920×1080 @60Hz |
| Operating Temperature | 0℃～50℃ |
| Dimensions | 482.6mm × 304.3mm × 94.6mm |
| Net Weight | 6.2kg |
The device supports a total load of up to 10.4 million pixels via its network and fiber outputs.
Yes, it supports 3D functionality when paired with the EMT200 3D transmitter and compatible 3D glasses.
The unit features 1 HDMI 2.0, 4 DVI, and 1 3G-SDI input interface.
Yes, it is widely applied in government, corporate, and military command centers for large fixed installations.
