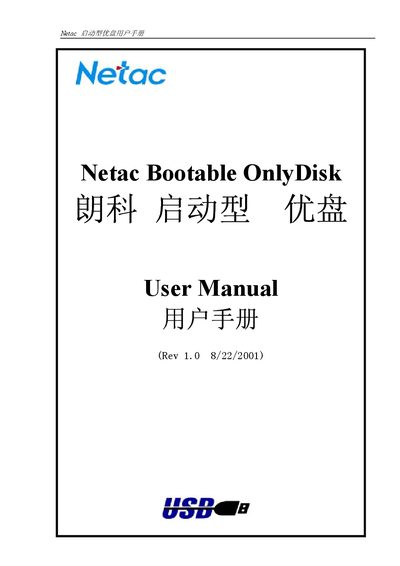

User manual for Netac Bootable OnlyDisk USB flash drive covering setup, driver installation, boot disk creation and technical specs.
The Netac Bootable OnlyDisk is a USB flash drive that can function as a bootable floppy or hard‑disk device and also as a high‑capacity storage medium. This manual explains the product contents, system requirements, driver installation, and step‑by‑step procedures for creating and using boot disks.
It also provides technical specifications, safety notes, troubleshooting FAQs, and contact information for Netac Technology Co., Ltd. This manual is written in Chinese.
| Capacity | 8 MB – 2 GB |
|---|---|
| Interface | USB 1.1 (standard A‑type) |
| Power Supply | USB bus 4.5 V ~ 5.5 V |
| Read Speed | up to 800 KB/s |
| Write Speed | up to 600 KB/s |
| Operating Temperature | -40 °C ~ +70 °C |
| Storage Temperature | -50 °C ~ +80 °C |
| Dimensions (standard model) | 76 mm × 25 mm × 16 mm |
| Write‑Protection Switch | Yes, with LED indicator |
If the device is in FD mode, set the BIOS to boot from USB FDD; if in HD mode, set the BIOS to boot from USB HDD and enable Boot Other Device.
No. You must disconnect the drive from the USB port before changing either switch.
A steady LED shows the device is connected but idle; a flashing LED indicates active read/write activity.
