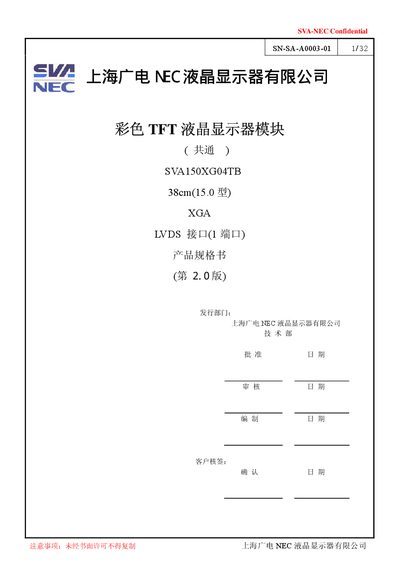

Technical specification sheet for the NEC SVA150XG04TB 38 cm color TFT LCD module.
The NEC SVA150XG04TB is a 38 cm (15‑inch) color TFT LCD module featuring an ar‑Si TFT panel and edge‑lit backlight. It is designed for integration into computer displays and other video equipment, accepting LVDS input and delivering high‑contrast, wide‑viewing‑angle images.
The document provides detailed mechanical dimensions, electrical characteristics, and performance parameters such as brightness, contrast, response time, and power consumption, along with guidelines for installation, handling, and warranty.
| Display diagonal | 38 cm (15 in) |
|---|---|
| Display area | 304.128 mm × 228.096 mm |
| Color depth | 16,777,216 colors (6‑bit + FRC) |
| Contrast ratio | 450:1 |
| Viewing angle | 120° horizontal, 100° vertical |
| Power supply voltage | 3.3 V (typ) |
| LVDS interface | 1 port, 8‑bit RGB |
| Backlight type | Edge‑lit, 2 cold‑cathode fluorescent lamps |
| Typical power consumption | 9.88 W |
The module has a 38 cm (15 inch) diagonal display.
It uses a single LVDS port with an 8‑bit RGB data format.
