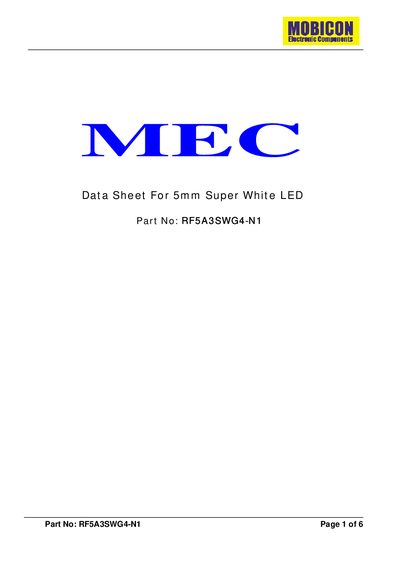

The MEC RF5A3SWG4-N1 5mm Super White LED datasheet provides specifications, ratings, and handling guidelines.
This datasheet describes the MEC RF5A3SWG4-N1 5mm Super White LED, including its physical package, optical characteristics, and typical performance curves. Key features include a standard T‑1 diameter package, reliable leads, and a super‑white lens color.
The document also lists absolute maximum ratings, recommended handling precautions, storage guidelines, and soldering conditions to ensure reliable operation and long lifetime of the LED.
| Forward Voltage (typical) | 3.0 V |
|---|---|
| Forward Voltage (maximum) | 4.0 V |
| Continuous Forward Current | 20 mA |
| Peak Forward Current (1/10 duty, 0.1 ms pulse) | 100 mA |
| Power Dissipation | 100 mW |
| Reverse Voltage | 5 V |
| Luminous Intensity | 5000–7000 mcd |
| Viewing Angle | 20° |
| Operating Temperature Range | -40 °C to +80 °C |
| Storage Temperature Range | -40 °C to +80 °C |
The peak forward current is 100 mA (1/10 duty cycle, 0.1 ms pulse) and the continuous forward current is 20 mA.
Store the LEDs at 30 °C or less and 70 % relative humidity or less; they can be kept for up to three months, or up to a year in a sealed nitrogen‑filled container.
