This is a 15-inch TFT LCD display from Sanyo with ultra-wide viewing angle and multi-scan function.

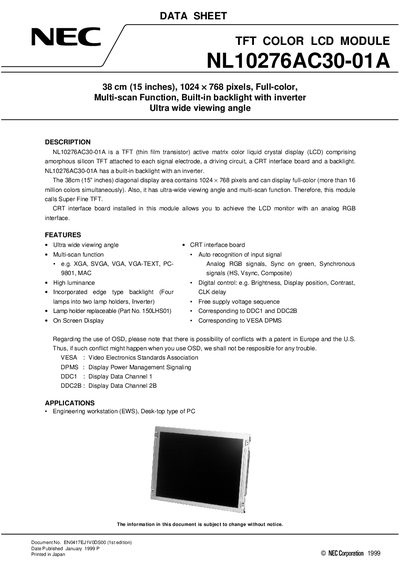

The NEC NL10276AC30-01A is a 38 cm (15 inch) diagonal active matrix color liquid crystal display module featuring amorphous silicon TFT technology. It supports full-color output with more than 16 million colors and includes an ultra-wide viewing angle and multi-scan function for compatibility with various analog RGB signals such as XGA, SVGA, and VGA.
The module integrates a driving circuit, a CRT interface board, and a built-in edge-type backlight with an inverter. Key features include auto-recognition of input signals, on-screen display (OSD) capabilities compliant with VESA DPMS, and replaceable lamp holders. It is designed for applications such as engineering workstations and desktop PCs.
| Display Area | 304.128 (H) x 228.096 (V) mm |
|---|---|
| Number of Pixels | 1024 x 768 |
| Pixel Pitch | 0.297 (H) x 0.297 (V) mm |
| Module Size | 350.0 (H) x 265.0 (V) x 23.0 (D) mm (typ.) |
| Weight | 1480 g (typ.) |
| Contrast Ratio | 150:1 (typ., perpendicular) |
| Viewing Angle | +/- 85° (typ.) |
| Luminance | 180 cd/m² (typ.) |
| Response Time | 44 ms (typ.), black to white |
| Supply Voltage | 12 V (typ.) |
The pixels are arranged in an RGB vertical stripe pattern.
Yes, it includes On Screen Display capabilities and corresponds to VESA DPMS standards.
The replacement part number for the inverter is 150PWO11.
