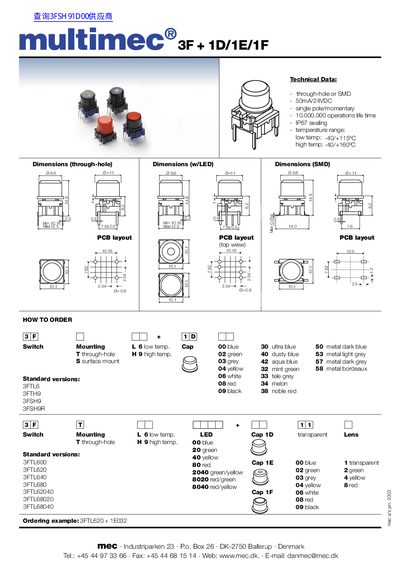

This PDF file is the instruction manual for the mec 3FTL6 series of products, which mainly introduces the features and usage methods of this series of products
The MEC multimec series provides through‑hole and surface‑mount (SMD) switches with a 50 mA rating at 24 VDC, single‑pole momentary operation and an IP67 sealing level. Each switch is rated for more than 10 million operations and operates from –40 °C up to +115 °C (high‑temperature versions up to +160 °C).
The document lists detailed mechanical dimensions, optional LED caps, right‑angle versions, ordering codes and material specifications such as ABS, polycarbonate, PBT and stainless‑steel housings. Environmental and reliability data (IEC‑68 standards) are also provided.
| Current rating | 50 mA |
|---|---|
| Operating voltage | 24 VDC |
| Life time (switch) | >10 000 000 operations |
| IP rating | IP67 |
| Temperature range (standard) | -40 °C to +115 °C |
| Temperature range (high‑temp version) | -40 °C to +160 °C |
| Standard actuation force | 3.0 N |
Each switch is rated for more than 10 million operations.
All switches have an IP67 sealing rating.
Yes, the series is offered in through‑hole and SMD (surface‑mount) versions.
