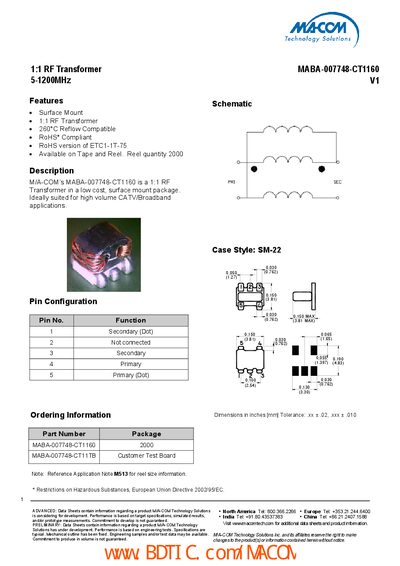

The M/A-COM MABA-007748-CT1160 is a surface‑mount 1:1 RF transformer for 5‑1200 MHz CATV/broadband use, with full electrical and mechanical specifications.
The MABA-007748-CT1160 is a low‑cost, surface‑mount 1:1 RF transformer designed for high‑volume CATV/broadband applications. It is RoHS compliant, 260 °C reflow compatible, and available on tape and reel.
Electrical specifications include insertion loss, amplitude and phase balance, and input return loss across the 5‑1200 MHz range. Absolute maximum ratings list 250 mW RF power, 30 mA DC current, and operating temperatures from –20 °C to +85 °C.
| Frequency range | 5‑1200 MHz |
|---|---|
| Operating temperature range | -20 °C to +85 °C |
| Package type | Surface Mount |
It operates from 5 MHz up to 1200 MHz.
