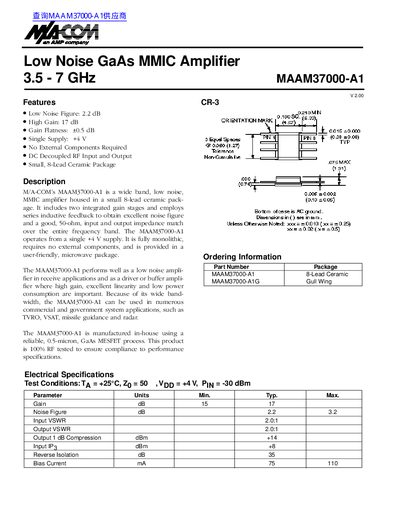

MAAM37000-A1 is a wide band, low noise, MMIC amplifier housed in a small 8-lead ceramic package. It includes two integrated gain stages and employs series inductive feedback to obtain excellent noise figure and a good, 50-ohm, input and output impedance match over the entire frequency band. The MAAM37000-A1 operates from a single +4 V supply. It is fully monolithic, requires no external components, and is provided in a user-friendly, microwave package.
The M/A-COM MAAM37000-A1 is a wide band, low noise monolithic microwave integrated circuit (MMIC) amplifier housed in an 8-lead ceramic package. It features two integrated gain stages and utilizes series inductive feedback to achieve excellent noise figure and impedance matching over the entire frequency range of 3.5 GHz to 7 GHz.
| Frequency Range | 3.5 - 7 GHz |
|---|---|
| Noise Figure (Typ) | 2.2 dB |
| Gain (Typ) | 17 dB |
| Supply Voltage | +4 V |
| Operating Temperature | -55°C to +100°C |
The device operates over a wide band from 3.5 GHz to 7 GHz.
It provides a typical high gain of 17 dB.
The amplifier features a low noise figure with a minimum of 2.2 dB.
